Filter submittals by desired Flow
Characterized, Brass Chrome Plated Ball and Stem
1/2", 6-way, Female NPT
|Cv (Sequence 2)||0.3|
|Media||Water 60% Glycol|
|Temperature Range||0°F to 212°F [-18°C to 100°C]|
|Close Off||200 PSI|
|Materials||Body||Brass, nickel plated|
|Ball||Brass, Chrome plated|
|Stem||Brass, Chrome plated|
|Characterising Disc||Brass Characterized|
|Flow Characteristic||2-Way||Equal Percentage|

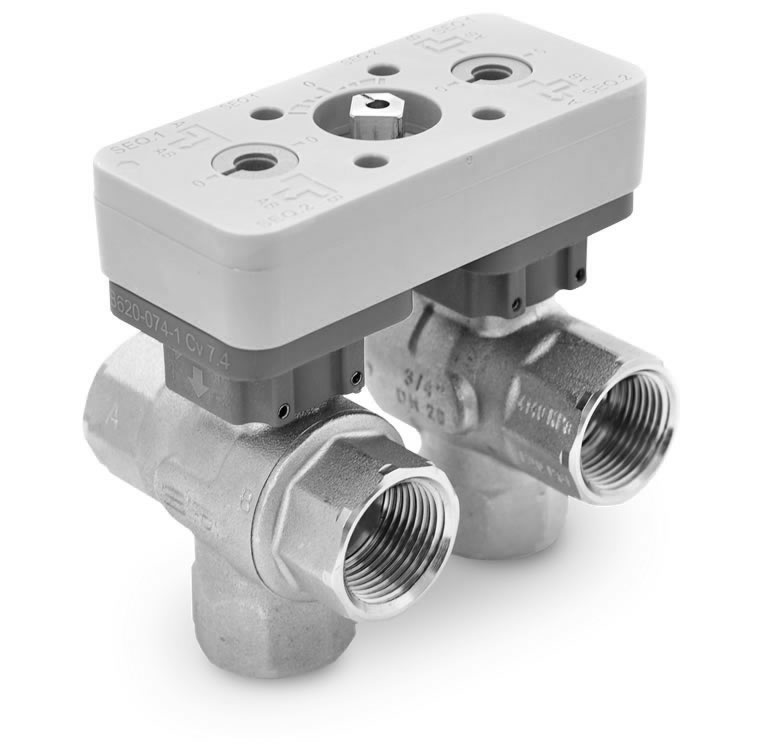

The Modular 6 Way valve (Mod 6) is ideal for chilled beam, fan coil, radiant heating and unit ventilator applications. Using a single actuator it reduces wiring and also eliminates the need of a change over valve, while enabling the use of a single coil for heating and cooling. The Modular 6 Way is available with a non fail-safe proportional (modulating) actuator.

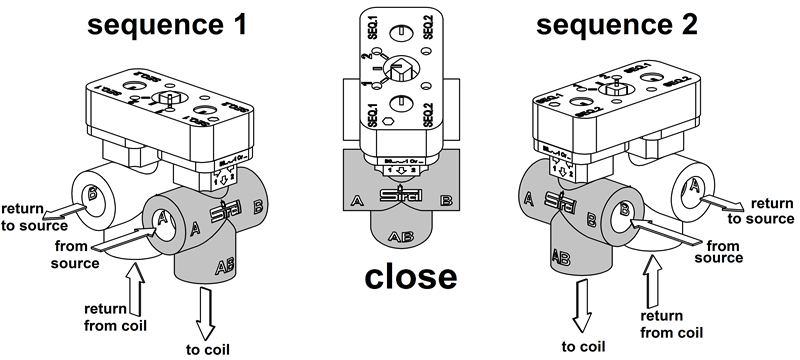

Modular 6 way valve is an electronically actuated characterized control ball valve. Control signal is modulating (proportional) non fail-safe and is used to determine the final positioning of both ball rotataion angles which determine sequence and amount of flow through the valve.

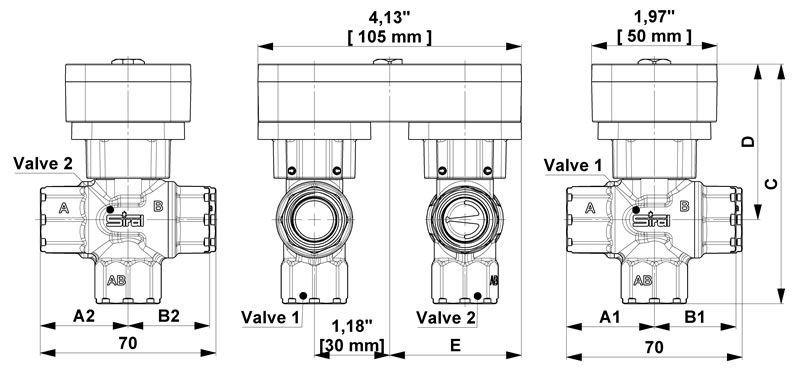

|35 mm||32.5 mm||95.5 mm||62 in||52.5 in|
|1.38 in||1.28 in||3.76 in||2.44 in||2.07 in|
