Filter submittals by desired Flow
Characterized, Stainless Steel Ball and Stem
3/4", 2-way, NPT
|Temperature Range||0°F to 250°F [-18°C to 120°C]|
|Close Off||200 PSI|
|Max Inlet||15 PSI|
|Materials||Body||Brass, nickel plated|
|Characterising Disc||Brass Characterized|
|Flow Characteristic||A to AB||Equal Percentage|
|B to AB||N/A|

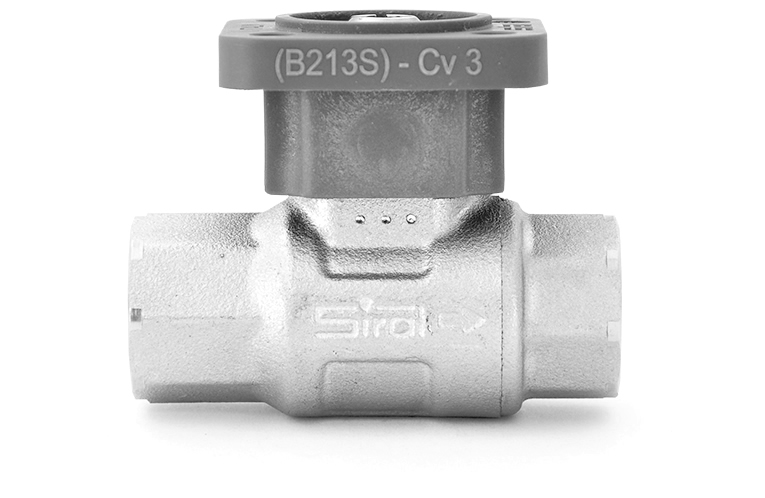

The Control Valve Steam (CVS) is a characterized control valve and is ideal for use in fan coils, unit ventilators and low pressure steam. The CVS is available in both fail-safe and non fail-safe applications.
The Siral CVS is an electronically actuated characterized control ball valve. Control signal options include on/off, floating point or modulating (proportional) and are used to determine the final positioning of the ball rotataion angle which determines the amount of flow through the valve.
|39 mm||37.5 mm||62.5 mm||43 in||22.5 in|
|1.53 in||1.48 in||2.46 in||1.69 in||0.89 in|
